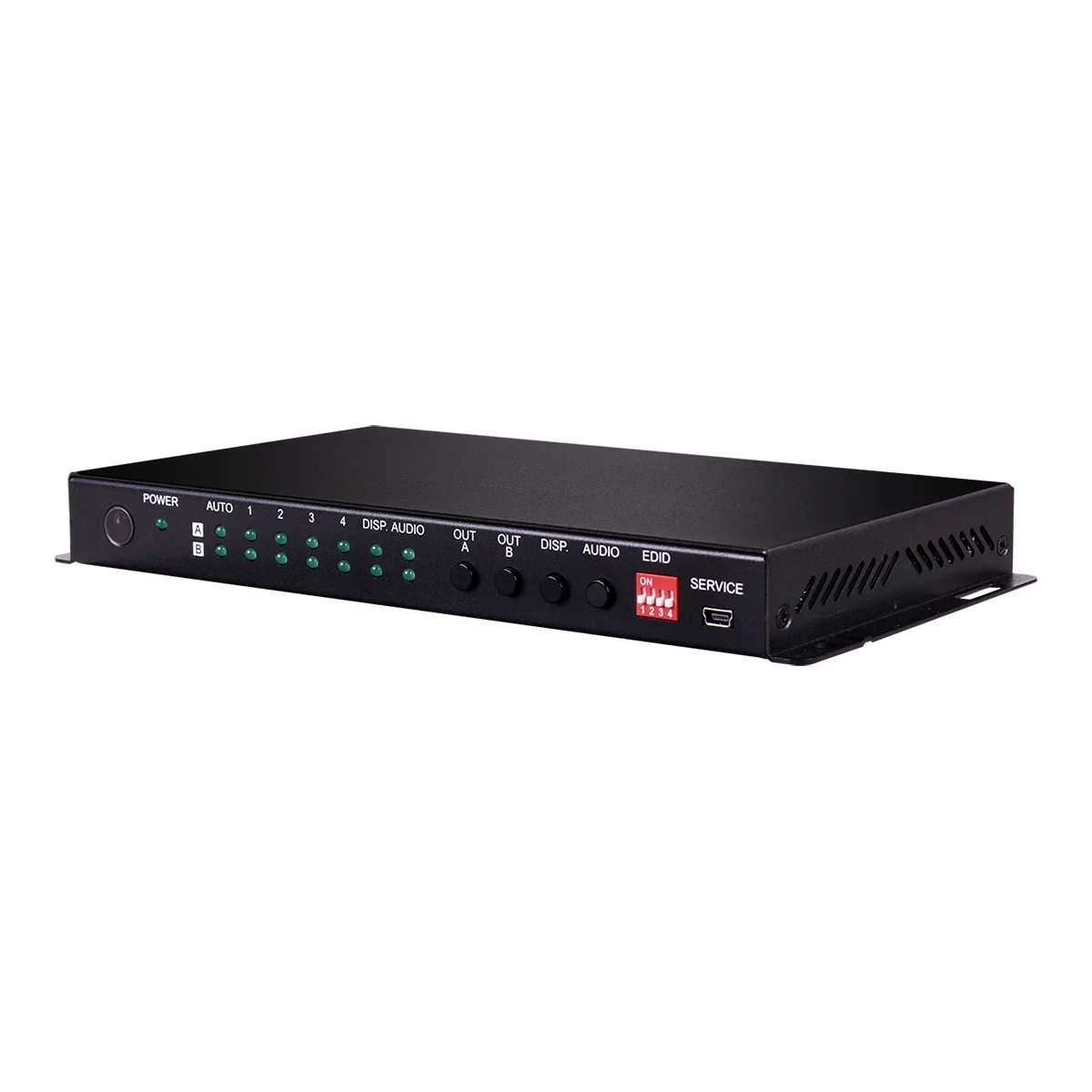

UHD+ 4x2 HDMI Matrix with Audio Output
Supports UHD+ resolutions up to 4096x2160@60Hz (YUV 4:4:4, 8 bit) , Supports 16-bit Deep Color up to 1080@60Hz , Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream , Support internal EDIDs and external EDIDs options, Support Auto Source Switch , Basic signal event automation via RS-232 or CEC
| Hersteller-Nr. | CPLUS-V4H2HA |
| Hersteller | Cypress Technology |
|

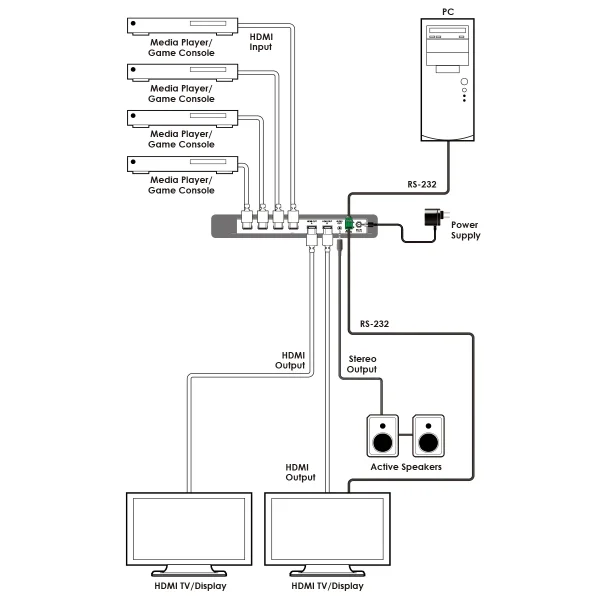

Interfaces |
|
|---|---|
|
Input Port |
4 x HDMI |
|
Output Port |
2 x HDMI 1 x Stereo (3.5mm) |
|
Service Port |
1 x USB 2.0 (mini B) |
|
Video |
||
|---|---|---|
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
|
HDCP Compliance |
2.x |
|
|
Input Signal Types |
4096 x 2160p@60 8-bit YUV 4:4:4,HDR 10 |
|
|
Output Signal Types |
4096 x 2160p@60 8-bit YUV 4:4:4,HDR 10 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 |
|
Maximum Output |
HDMI |
4096×2160p@60 |
|
Audio |
|
|---|---|
|
Input Signal Types |
HDMI |
|
Output Signal Types |
HDMI, Unbalanced Stereo |
|
Digital Formats |
HDMI 7.1 CH LPCM, Bitstream, HD Bitstream |
|
Power |
|
|---|---|
|
Power Supply |
5V/2.6A |
|
Power Consumption |
8.62W |
|
Enclosure |
|
|---|---|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×117mm [All Inclusive] |
|
Weight |
620g |
|
Field Firmware Update |
|---|
|
Micro-USB to PC |
|
ORDERING INFORMATION |
|
|---|---|
|
Model No. |
Product Description |
|
CPLUS-V4H2HA |
UHD+ 4x2 HDMI Matrix with Audio Output |
